$179.11 – $390.38
Discover the high-quality TRS/TRS MIL-STD-1553B Twinax Cable Assembly with PL155-47 connectors. Designed for high-speed signaling, this cable assembly meets military and organizational specifications. It’s perfect for spacecraft, medical equipment, laboratories, avionic systems, and general control applications. With impressive temperature tolerance and a 400 Vrms capacity, this cable assembly offers reliable performance. Trycay Industries provides 13 different length options to suit your specific needs.
Discover the features that make our TRS/TRS MIL-STD-1553B Twinax Cable Assembly a top choice for various high-speed signaling applications.

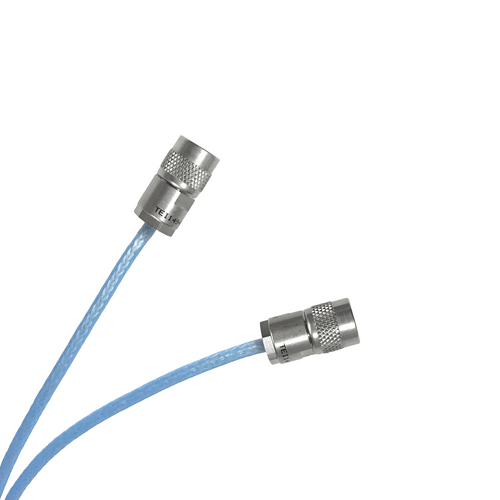

This high-quality twinaxial cable assembly is perfect for many MIL-STD-1553B systems. It features two TRS connectors wrench-crimped to each end of an M17/176-00002 twinaxial cable, enabling high-speed signaling. This product complies with military and organizational specifications, making it suitable for spacecraft, medical equipment, laboratories, avionic systems, and general control applications.
The TRS PL155-47 connectors and M17/176-00002 twinaxial cable can withstand a wide range of temperatures, from -55°C (-67°F) to 165°C (329°F). This ensures reliable performance in extreme conditions.
Our cable assembly allows for high-speed signaling, making it an excellent choice for applications where data transfer speed is critical.
With a voltage rating of up to 400 Vrms, this cable assembly can handle a wide range of electrical requirements.
To accommodate various project needs, we offer this cable assembly in thirteen different sizes ranging from 1′ to 50′.
If our standard lengths don’t meet your specific requirements, consider exploring our custom solutions to tailor your purchase to your exact needs.
We are a trusted name in providing high-quality cable assemblies for various industries. Order your TRS/TRS MIL-STD-1553B Twinax Cable Assembly today.
– Specification: MIL-STD-1553B
– Connector Type: TRS PL155-47 straight plug (3-slot/120° bayonet coupling)
– Cable Type: M17/176-00002 twinaxial (twisted pair shielded) cable with blue PFA jacket
– Each cable assembly is 100% Tested for continuity & a dielectric withstanding voltage of 1000 Vrms
– Impedance: 78 Ω
– Voltage Rating: 400 Vrms Maximum
– Temperature Rating: -55°C (-67°F) to 165°C (329°F)
– Manufacturer: Trycay
| Specification | MIL-STD-1553B |
|---|---|
| Connector Type | TRS PL155-47 straight plug (3-slot/120° bayonet coupling) |
| Cable Type | M17/176-00002 twinaxial (twisted pair shielded) cable with blue PFA jacket |
| Impedance | 78 Ω |
| Voltage Rating | 400 Vrms Maximum |
| Temperature Rating | -55°C (-67°F) to 165°C (329°F) |
| Manufacturer | Trycay |
| Sizes | 1', 2', 3', 4', 5', 6', 8', 10', 12', 15', 20', 25', 50' |
