Product Overview

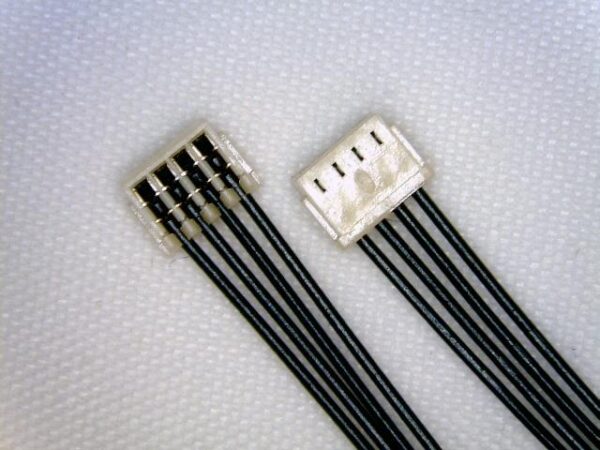

• Product Name: SR 1.0 mm Pitch A04SR04SR30K51A Connector
• Type: 4-position connector
• Color: Black
• Product Number: A04SR04SR30K51A

Technical Specifications

• Pin Configuration: 4 pins
• Wire Gauge: 30 AWG
• UL Standard: UL1571
• Inside Length: 2 inches
• Configuration Type: 1 to 1
• Maximum Current: 0.7 AMPs
• Pin Pitch: 1.0 mm

Application Areas

• Suitable for low-power electronic devices, such as sensors, LED lights, and small circuit boards.
• Ideal for applications requiring compact design, especially in space-constrained environments.
• Compliant with UL1571 standard for electronic assemblies, ensuring safe and reliable electrical connections.
• Widely used in consumer electronics, industrial equipment, and communication devices.

Connector Features

• Design: This connector features a 1.0 mm pin pitch, suitable for various electronic applications, ensuring high-density connections.
• Material: Manufactured from high-quality materials, providing excellent electrical performance and durability, including corrosion and oxidation resistance.
• Safety: Compliant with UL standards, ensuring safe operation under specified conditions, reducing the risk of short circuits and overheating.
• Ease of Use: Designed for easy plug-in and unplugging, supporting quick connections and disconnections.

Usage Instructions

• Installation:
  • Ensure to check the alignment of pins and sockets before installation to avoid damage.
  • Suitable for devices requiring 1 to 1 connections, ensuring proper connections to prevent electrical faults.
• Compatibility: Compatible with various electronic devices, particularly those requiring low current and compact connectors.
• Maintenance: Regularly inspect the connector to ensure it is free from dust and corrosion, maintaining a good electrical connection.

Additional Information

• The design and electrical characteristics of this connector make it an important reference for engineers when designing and selecting connectors, suitable for a variety of electronic projects.
• Technical support and customer service are available to assist users with any issues encountered during use.

Conclusion

The SR 1.0 mm Pitch A04SR04SR30K51A connector is a high-performance electronic connection solution with multiple application potentials, ideal for situations requiring high-density connections and low-power transmission. Its compliance with UL standards ensures safety and reliability, making it an ideal choice for electronics engineers and designers.
