$24.28 – $2,116.05

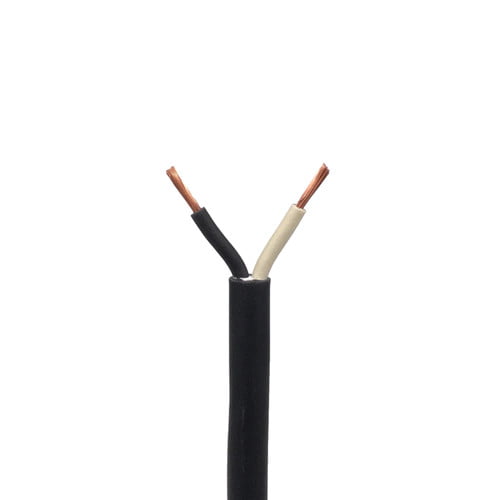

Explore the potential of our SOOW Portable Cord! This dynamic 2-conductor 600V power cable is designed to deliver reliable power to your tools, equipment, and appliances. It’s equipped with two flexible EPDM-insulated wires and a sturdy black CPE outer jacket, making it resistant to oils, solvents, moisture, UV exposure, and other environmental challenges. With five AWGs to choose from and seven available cable lengths, Trycay Industries ensures you have the perfect cable for your project.
Discover the remarkable capabilities of our SOOW Portable Cord, a reliable 2-conductor 600V power cable suitable for a wide range of power distribution needs.
Featuring two individually insulated conductors, our SOOW Portable Cord offers the versatility to support a variety of applications, from heavy machinery to residential devices.
This cable is engineered with two EPDM-insulated wires, ensuring safe and consistent power delivery. The rugged black CPE outer jacket provides durability and resistance to oils, solvents, moisture, UV exposure, and challenging weather conditions.
The SOOW Portable Cord is versatile, making it ideal for both indoor and outdoor power applications. It’s even suitable for immersion in water when properly sealed and terminated.
Choose from five different AWGs, including 10 AWG (104/30), 12 AWG (65/30), 14 AWG (41/30), 16 AWG (26/30), and 18 AWG (16/30), to match your specific power requirements. Additionally, Trycay Industries offers seven cable lengths to ensure you have the perfect fit for your project.
Explore the technical details that make our SOOW Portable Cord a dependable solution for power distribution.
– UL Style SOOW Portable Cord
– 10 AWG (104/30)
– 12 AWG (65/30)
– 14 AWG (41/30)
– 16 AWG (26/30)
– 18 AWG (16/30)
– 600V
– 90°C (194°F)
– Bare Copper
– EPDM
– Black & White
– Black CPE
– 10 AWG: 30 A
– 12 AWG: 25 A
– 14 AWG: 18 A
– 16 AWG: 13 A
– 18 AWG: 10 A
Select the ideal cable length for your project from our comprehensive range of options:
– 10 ft (3.05 m)
– 25 ft (7.62 m)
– 50 ft (15.24 m)
– 100 ft (30.48 m)
– 250 ft (76.20 m)
– 500 ft (152.40 m)
– 1000 ft (304.80 m)
| Cable Type | UL Style SOOW Portable Cord |
|---|---|
| No. of Conductors | Two, Individually, Insulated |
| Conductor Material | Bare Copper |
| Wire Sizes & Stranding: | 10 AWG (104/30), 12 AWG (65/30), 14 AWG (41/30), 16 AWG (26/30), 18 AWG (16/30) |
| Insulation Material | EPDM |
| Insulation Color | Black & White |
| Cable Outer Jacket | Black CPE |
| Cable Overall Diameter by Wire Size | 10 AWG: 0.620", 12 AWG: 0.570", 14 AWG: 0.510", 16 AWG: 0.370", 18 AWG: 0.345" |
| Voltage Rating | 600 V |
| Current Rating by Wire Size | 10 AWG: 30 A, 12 AWG: 25 A, 14 AWG: 18 A, 16 AWG: 13 A, 18 AWG: 10 A |
| Temperature Rating | 90°C (194°F) |
| Sizes | 10 ft (3.05 m), 25 ft (7.62 m), 50 ft (15.24 m), 100 ft (30.48 m), 250 ft (76.20 m), 500 ft (152.40 m), 1000 ft (304.80 m) |
| hook up wire size | |
| hook up wire color |
