$24.09 – $2,623.65

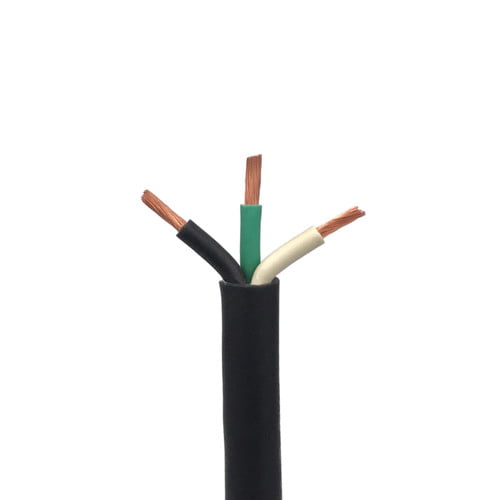

Experience unmatched power delivery with our SJOOW Portable Cord. This robust 3-conductor 300V power cable is engineered to meet your power distribution needs for tools, equipment, appliances, and portable machinery, both indoors and outdoors. The flexible EPDM-insulated wires in black, white, and green, along with the rugged black CPE outer jacket, ensure resistance to oils, solvents, moisture, UV exposure, and various environmental factors. With five available wire sizes ranging from 10 to 18 AWG and 7 cable lengths to choose from, Trycay Industries offers the ultimate flexibility for your projects.
Discover the power and versatility of our SJOOW Portable Cord, a premium 3-conductor 300V power cable designed to meet your diverse power delivery requirements.
Featuring three individually insulated conductors, our SJOOW Portable Cord provides superior flexibility for a wide range of applications, from heavy machinery to portable electronics.
Our cable is designed with EPDM-insulated wires in black, white, and green to ensure safe and reliable power delivery. The rugged black CPE outer jacket enhances durability and makes it resistant to oils, solvents, moisture, UV exposure, and various environmental conditions.
This cord is suitable for both indoor and outdoor applications, adapting to your project’s specific needs. It’s even suitable for immersion in water when sealed and terminated properly.
Choose from five different wire sizes, including 10 AWG (104/30), 12 AWG (65/30), 14 AWG (41/30), 16 AWG (26/30), and 18 AWG (16/30), to match your power requirements precisely. Additionally, Trycay Industries offers seven different cable lengths, ensuring you have the perfect fit for your project.
Explore the technical specifications that make our SJOOW Portable Cord a reliable choice for power distribution.
– UL Style SJOOW Portable Cord
– 10 AWG (104/30)
– 12 AWG (65/30)
– 14 AWG (41/30)
– 16 AWG (26/30)
– 18 AWG (16/30)
– 300V
– 90°C (194°F)
– Bare Copper
– EPDM
– Black, White, & Green
– Black CPE
– 10 AWG: 30 A
– 12 AWG: 25 A
– 14 AWG: 18 A
– 16 AWG: 13 A
– 18 AWG: 10 A
Select the ideal length for your project from our extensive range of options:
– 10 ft (3.05 m)
– 25 ft (7.62 m)
– 50 ft (15.24 m)
– 100 ft (30.48 m)
– 250 ft (76.20 m)
– 500 ft (152.40 m)
– 1000 ft (304.80 m)
| Manufacturer | Trycay |
|---|---|
| Cable Type | UL Style SJOOW Portable Cord |
| No. of Conductors | Three, Individually Insulated |
| Conductor Material | Bare Copper |
| Wire Sizes & Stranding: | 10 AWG (104/30), 12 AWG (65/30), 14 AWG (41/30), 16 AWG (26/30), 18 AWG (16/30) |
| Insulation Material | EPDM |
| Insulation Color | Black, White, Green |
| Cable Outer Jacket | Black CPE |
| Cable Overall Diameter by Wire Size: | 10 AWG: 0.580", 12 AWG: 0.430", 14 AWG: 0.370", 16 AWG: 0.330", 18 AWG: 0.305" |
| Voltage Rating | 300 V |
| Current Rating by Wire Size: | 10 AWG: 30 A, 12 AWG: 25 A, 14 AWG: 18 A, 16 AWG: 13 A, 18 AWG: 10 A |
| Temperature Rating | 90°C (194°F) |
| Sizes | 10 ft (3.05 m), 25 ft (7.62 m), 50 ft (15.24 m), 100 ft (30.48 m), 250 ft (76.20 m), 500 ft (152.40 m), 1000 ft (304.80 m) |
| hook up wire size | |
| hook up wire color |
