$23.55 – $1,328.06

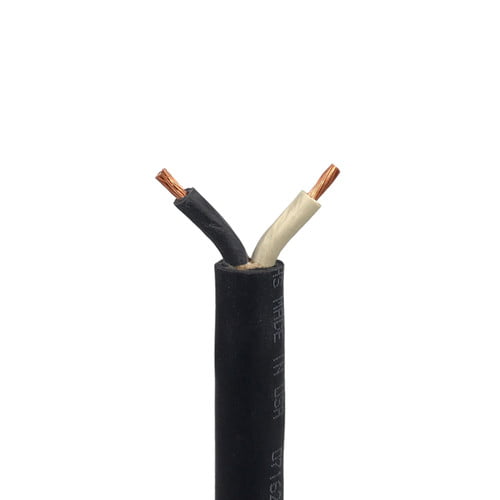

Boost your project with our rugged SJOOW Portable Cord. This heavy-duty 2-conductor power cable, rated at 300V, is your ideal solution for delivering power to tools, equipment, appliances, and portable machinery, both indoors and outdoors. The flexible EPDM-insulated wires in black and white, along with the robust black CPE outer jacket, ensure resistance to oils, solvents, moisture, UV rays, and various weathering conditions. With multiple wire sizes from 12 to 18 AWG and 7 different cable lengths, Trycay Industries has your power needs covered.
Elevate your projects with our premium SJOOW Portable Cord, a heavy-duty 300V power cable that caters to your power delivery requirements.
This versatile cable features two individually insulated conductors, making it suitable for a wide range of applications. With an emphasis on flexibility, it adapts to the needs of your project.
Our SJOOW Portable Cord is engineered with EPDM-insulated wires in both black and white, ensuring safe and reliable power delivery. The rugged black CPE outer jacket enhances its durability, making it resistant to oils, solvents, moisture, UV exposure, and a variety of environmental conditions.
This cord is designed for both indoor and outdoor applications, providing the flexibility required for your projects. It is even suitable for immersion in water, provided proper sealing and termination techniques are employed.
Choose from four different wire sizes, including 12 AWG (65/30), 14 AWG (41/30), 16 AWG (26/30), and 18 AWG (16/30), to meet your specific power requirements. Additionally, Trycay Industries offers seven different cable lengths, ensuring you have the right fit for your project.
Take a closer look at the technical specifications that make our SJOOW Portable Cord an excellent choice.
– UL Style SJOOW Portable Cord
– 12 AWG (65/30)
– 14 AWG (41/30)
– 16 AWG (26/30)
– 18 AWG (16/30)
– 300V
– 90°C (194°F)
– Bare Copper
– EPDM
– Black & White
– Black CPE
– 12 AWG: 25 A
– 14 AWG: 18 A
– 16 AWG: 13 A
– 18 AWG: 10 A
Select the ideal length for your project from our extensive range of options:
– 10 ft (3.05 m)
– 25 ft (7.62 m)
– 50 ft (15.24 m)
– 100 ft (30.48 m)
– 250 ft (76.20 m)
– 500 ft (152.40 m)
– 1000 ft (304.80 m)
| Manufacturer | Trycay |
|---|---|
| Cable Type | UL Style SJOOW Portable Cord |
| No. of Conductors | Two, Individually Insulated |
| Conductor Material | Bare Copper |
| Wire Sizes & Stranding: | 12 AWG (65/30), 14 AWG (41/30), 16 AWG (26/30), 18 AWG (16/30) |
| Insulation Material | EPDM |
| Insulation Color | Black & White |
| Cable Outer Jacket | Black CPE |
| Cable Overall Diameter by Wire Size: | 12 AWG: 0.410", 14 AWG: 0.340", 16 AWG: 0.310", 18 AWG: 0.285" |
| Voltage Rating | 300 V |
| Current Rating by Wire Size: | 12 AWG: 25 A, 14 AWG: 18 A, 16 AWG: 13 A, 18 AWG: 10 A |
| Temperature Rating | 90°C (194°F) |
| Sizes | 10 ft (3.05 m), 25 ft (7.62 m), 50 ft (15.24 m), 100 ft (30.48 m), 250 ft (76.20 m), 500 ft (152.40 m), 1000 ft (304.80 m) |
| hook up wire size | |
| hook up wire color |
