$58.57 – $136.63
The RG-58C coaxial cable assembly, featuring N-Type Female Bulkhead connectors, is designed for versatile 50 Ω impedance signal transmission applications. Known for its role in RF setups, this cable assembly serves military and civil RF operations, such as cable television, telecommunications, WiFi/network antennas, and radio setups. Its applications extend to the medical, scientific, and aerospace fields. Equipped with gold-plated contacts and a non-contaminating PVC jacket, it’s a reliable choice. With 13 available lengths and custom options, it’s a versatile solution for signal transfer.
Discover the features that make the RG-58C Coaxial Cable Assembly an optimal choice for various RF applications.
This coaxial cable assembly is specially designed for a 50 Ω impedance, making it ideal for signal transmission across a wide range of RF applications. It excels in applications where RF signals are critical.
The RG-58C is a reliable choice for military and civil radio frequency operations. Some of the applications include:
– Cable television (CATV/MATV)
– Telecommunications
– WiFi/network antennas
– Laboratory benches
– Ham/CB/other radio setups
This versatile coaxial cable assembly finds applications beyond RF. It’s well-suited for signal transfer in the medical industry, scientific research, and aerospace projects. Its quality and reliability make it a valuable choice for these fields.

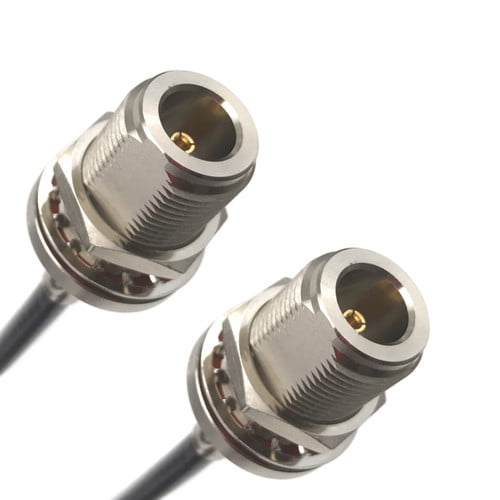

The RG-58C Coaxial Cable Assembly is equipped with N-Type Female Bulkhead connectors. These connectors feature a panel mount design, ensuring a secure and stable connection. The connectors have nickel-plated brass bodies and gold-plated contacts for superior signal transfer.
The cable is coated in a non-contaminating PVC jacket. This jacket not only enhances protection but also ensures that the cable remains reliable and durable, even in challenging environments.
Choose from 13 different lengths available in the drop-down menu to suit your specific requirements. If our standard lengths don’t meet your needs, we offer custom options, including wire cutting and printing. We can also create new RF cable assemblies with alternative connectors to match your exact specifications.
With a reputation for delivering high-quality cable assemblies, Trycay Industries offers a range of reliable solutions for your connectivity needs. Contact us today to explore your options and get started.
– Cable Type: RG-58C
– Connector Type: N-Type Female Bulkhead
– Impedance: 50 Ω
– Jacket: Non-contaminating PVC
– Connector Material: Nickel-plated brass (body), Gold-plated (contacts)
Manufacturer: Trycay
| Manufacturer | Trycay |
|---|---|
| Impedance | 50 Ω |
| Operating Frequency | 5.0 GHz Maximum |
| Voltage Rating | 1500 V Maximum |
| Temperature Rating | -40°C (-40°F) to 80°C (176°F) |
| Cable Type | RG-58C, U Coaxial |
| Jacket | Black PVC (non-contaminating), Type IIA per MIL-C-17 |
| Bend Radius | 2.0" |
| Overall Diameter | 0.195" |
| Connector A Type | N connector (Type N) |
| Contact Material | Gold-plated phosphor bronze |
| Connector B Type | N connector (Type N) |
| Gender | Female (Jack) |
| Style | Bulkhead panel mount (3/4" hex nut) |
| Body Material | Nickel-plated brass |
| Mating Cycles | 500 |
| Sizes | 1' (0.31 m), 2' (0.61 m), 3' (0.91 m), 4' (1.22 m), 5' (1.52 m), 6' (1.83 m), 8' (2.44 m), 10' (3.05 m), 12' (3.66 m), 15' (4.57 m), 20' (6.10 m), 25' (7.62 m), 50' (15.24 m) |
