Product Overview

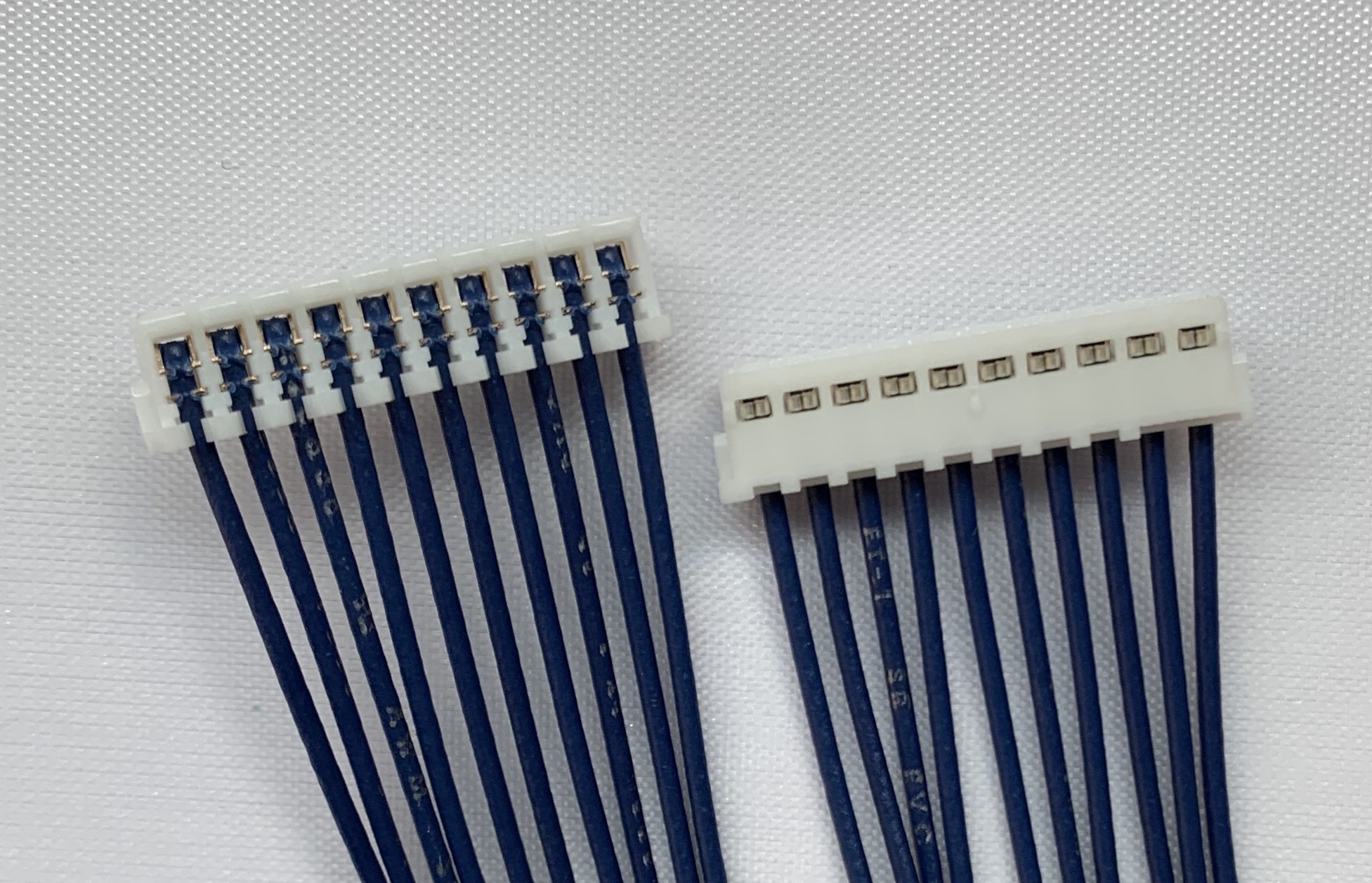

The KR 2.0 mm Pitch A10KR10KR26E51A Connector delivers exceptional performance for internal connections in electronic devices. Its compact design, combined with superior electrical properties, ensures it meets the rigorous demands of modern electronics. Consequently, it is an ideal solution for circuit design and product development.

Technical Specifications

This connector boasts the following key specifications:

• Number of Positions: 10
• Wire Specification: AWG 26
• UL Certification: UL1061
• Inside Length: 2 inches
• Color: Blue
• Configuration: 1-to-1
• Maximum Current: 1 AMP
• Material: High-strength plastic for the housing and gold-plated contact points for excellent conductivity and corrosion resistance.

By combining robust materials and precise design, the connector provides reliability across a wide range of applications.

Application Areas

The connector is versatile, serving various industries and applications:

1. Internal Wiring for Electronic Devices
   It supports stable internal connections in consumer electronics, including smartphones and tablets.
2. Circuit Board Connections
   Thanks to its stable electrical properties, it is ideal for inter-board connections in circuits.
3. Consumer Electronics
   This connector is frequently used in home appliances, handheld devices, and other consumer gadgets.
4. Automation Equipment
   It suits industrial environments, offering durable performance for robotics and automated systems.

Moreover, its reliability across these sectors makes it a go-to choice for manufacturers.

Compatibility

UL1061 Standard

The connector aligns perfectly with UL1061-certified wires and cables, thus ensuring compliance with safety standards.

KR Series Integration

It is also compatible with other KR series connectors, enabling flexible configurations to meet diverse project requirements.

This flexibility ensures that engineers can adapt the connector to their specific needs.

Purchasing Information

Manufacturer

Trycay manufactures the KR 2.0 mm Pitch A10KR10KR26E51A Connector, ensuring consistent quality and durability.

Availability

Consumers can purchase the connector through authorized local suppliers or trusted online retailers. This approach guarantees genuine products and reliable service.

Related Products

To complement the KR 2.0 mm Pitch Connector, the following related products are available:

1. KR Series Models
   Additional models meet different technical and application-specific needs.
2. Compatible Accessories
   Trycay provides compatible cables and terminals for a seamless connection experience.
3. Installation Tools
   Professional-grade tools simplify the connector’s installation and ensure proper assembly.

Maintenance and Safety Guidelines

Proper Usage

To maintain optimal performance, operate the connector within its rated current and voltage range. Exceeding these limits may result in product damage.

Environmental Recommendations

To extend the connector’s lifespan, avoid exposing it to excessive humidity or extreme temperatures.

These precautions not only enhance safety but also maximize the product’s reliability.

Reference Materials

For detailed technical support, users can refer to:

1. Product Manuals
   Comprehensive manuals are downloadable from the JST official website, providing installation and usage guidance.
2. Certification Documents
   UL standards and certification information are accessible on the UL official site to verify compliance with industry regulations.

These resources ensure users fully understand the product’s capabilities and compliance.

Use Case: A Success Story

A leading consumer electronics brand recently incorporated the KR 2.0 mm Pitch Connector into its latest smartphone model. As a result, the brand achieved improved internal connections, enhancing both performance and reliability.

This real-world application demonstrates the connector’s effectiveness in modern electronic design.
