Product Overview

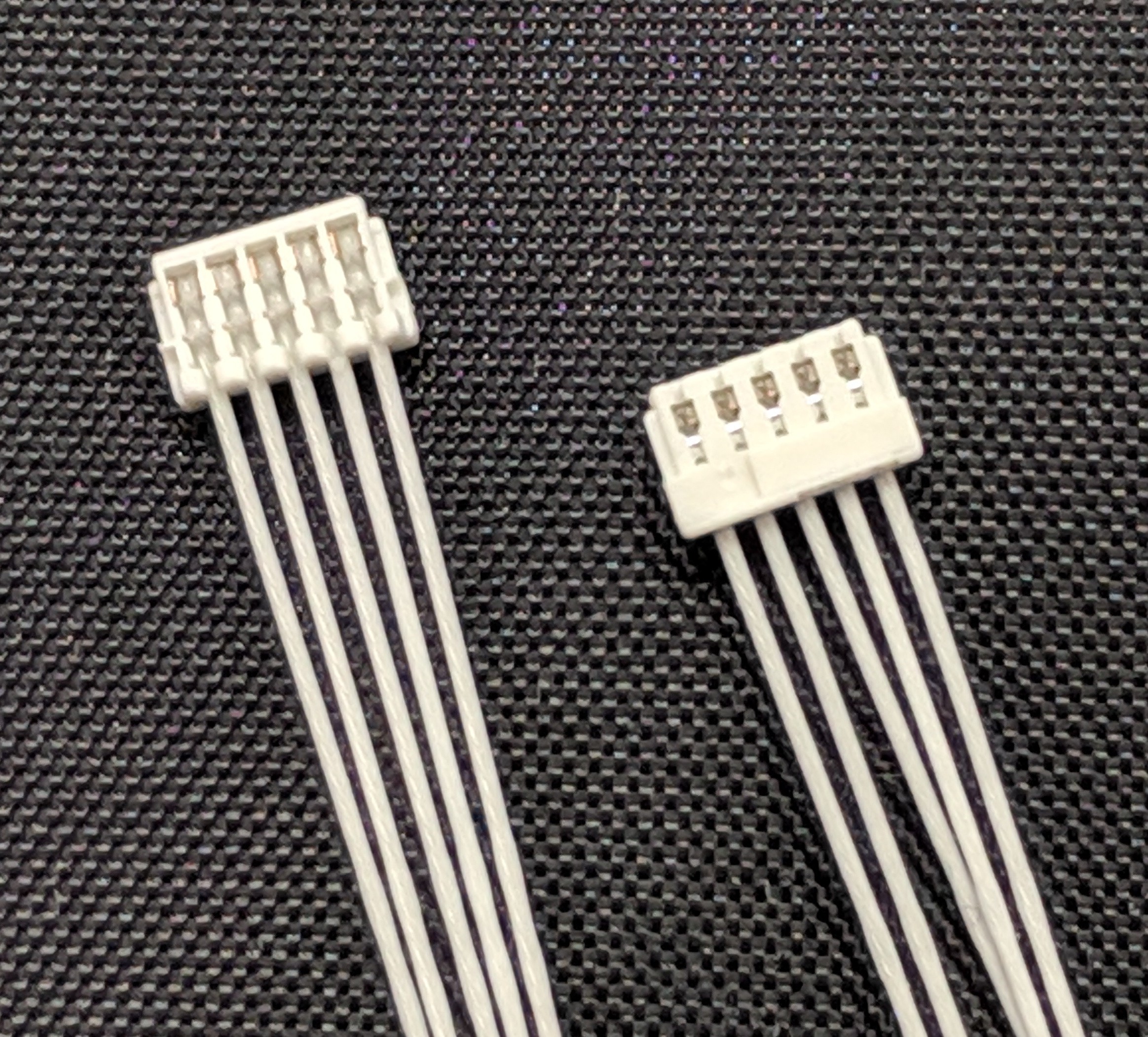

• Product Name: SUR 0.8 mm Pitch A05SUR05SUR32W51A
• Description: This connector is designed for 1:1 mating, featuring five pins, suitable for compact and reliable connections in electrical components, widely applicable in industrial and consumer electronics.

Specifications

• Number of Pins: 5
  • Provides five connection points to meet various application needs.
• Pitch: 0.8 mm
  • Compact design saves space, suitable for high-density installation environments.
• AWG: 32
  • Compatible with AWG 32 specification cables, ensuring good electrical connectivity.
• UL Certification: UL11136
  • Complies with UL standards, ensuring safety and reliability of the product.
• Maximum Current: 0.5 AMPs
  • Suitable for low current applications, ensuring stable operation under rated current.
• Inside Length: 2 inches
  • Provides sufficient length to accommodate different installation needs.
• Color: White
  • Standard white appearance, suitable for various environments.
• Material: Nylon
  • Durable and lightweight material, providing good insulation performance.

Application Scenarios

• Electrical Panel and Internal Wiring: Suitable for internal wiring of industrial equipment and household appliances.
• LED Lighting: Can be used for power connections of LED fixtures, ensuring stable current supply.
• Automotive Wiring: Suitable for internal electrical connections in vehicles, meeting high voltage and current requirements.
• High Current and High Voltage Insulation: Suitable for demanding electrical applications, ensuring safe and reliable connections.

Standards and Certifications

• UL11136: A standard for appliance wiring materials, ensuring the safety and reliability of the connector in electrical applications.
• Complies with UL Standards: Suitable for industrial use, ensuring stability and safety in various environments.

Compatibility

• Compatible with AWG 32 Cables: Ensures effective connections in various devices and applications, adapting to different electrical systems.

Additional Information

• 1:1 Configuration: Simplifies the installation process, easy to operate, suitable for quick assembly and maintenance.
• Stable Electrical Performance: Provides reliable connection solutions in demanding environments.
• Durability: Use of nylon material ensures the connector’s longevity and performance stability in various environments.

Parameter Table
