In electronic devices, the choice of connectors is critical. The 5 Pin JST Connector, known for its compact size and efficiency, has become a popular choice for many electronic projects due to its reliability and versatility. This article will explore the features, specifications, and applications of this connector in various fields.

Product Overview

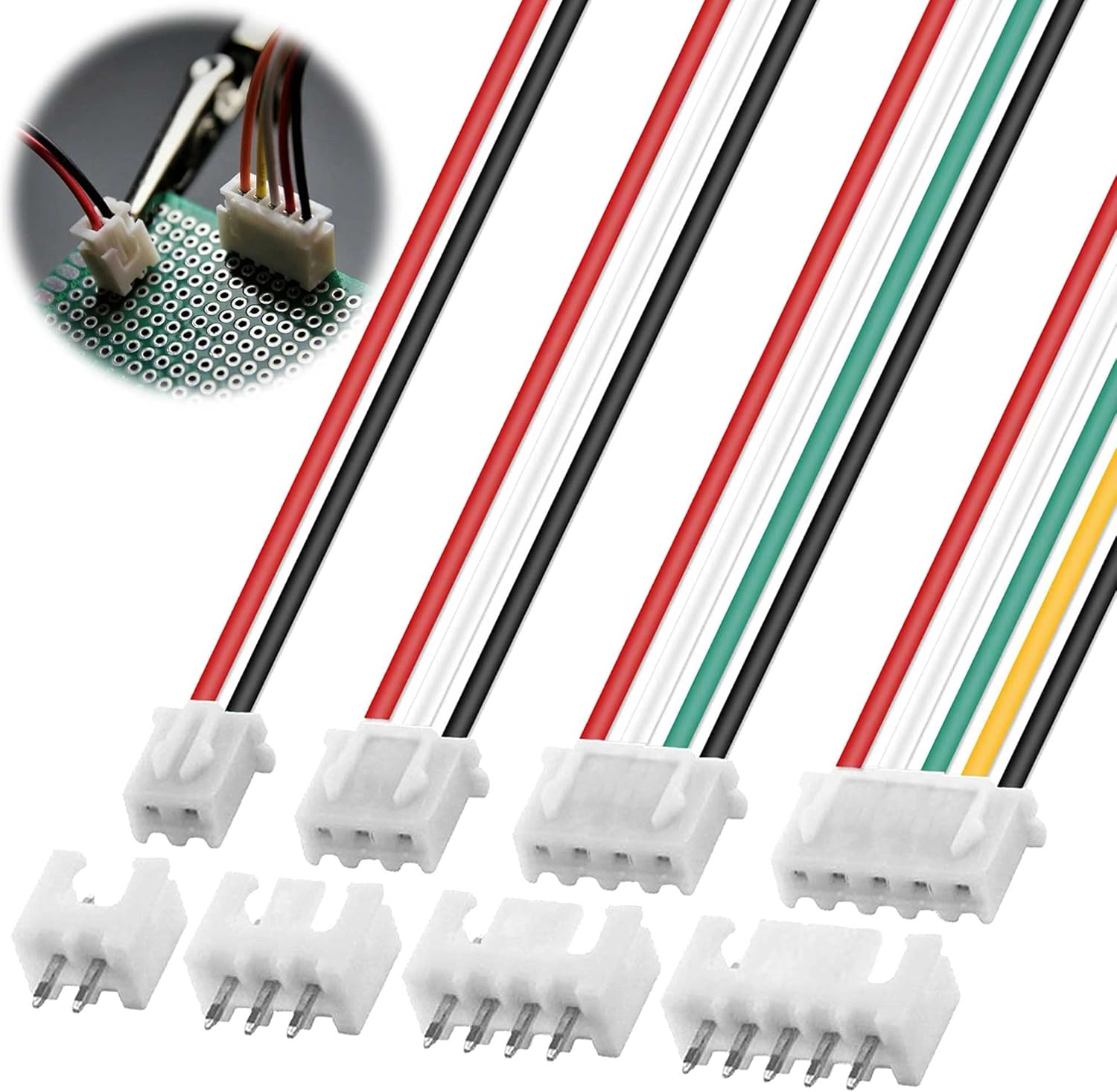

The 5 Pin JST Connector is a common connector widely used in devices like batteries, LED lights, sensors, and more. Its small size and excellent connection performance make it a favorite among electronics enthusiasts and professionals alike. Whether used in DIY projects or industrial applications, the 5 Pin JST Connector ensures stable signal transmission.

Product Specifications

Connector Types

JST PH Series

The JST PH series connectors have a pin pitch of 2.0mm and are suitable for medium-current applications. They are commonly used in battery connections, LED strips, and sensor modules. Due to their stable performance and durability, they are a popular choice for many projects.

JST SH Series

The JST SH series connectors feature a pin pitch of 1.0mm and are designed for more compact applications where space is limited. They are often found in small electronic devices and keyboard projects, making them perfect for space-saving designs.

JST XH Series

The JST XH series connectors have a pin pitch of 2.5mm, making them suitable for high-current applications. These connectors offer a more robust connection and are often used in motors, drive circuits, and other high-power devices.

Usage Instructions

When using the 5 Pin JST Connector, proper connection is crucial. Ensure that the plug is aligned with the socket and press gently until you hear a “click,” indicating a successful connection. Avoid applying too much force to prevent damage to the connector. Regularly check the connectors and wiring for looseness or damage to extend their service life.

Common Questions

1. What devices can the 5 Pin JST Connector be used for?
   The 5 Pin JST Connector is suitable for various electronic devices, including battery packs, LED lighting, sensor modules, and more. It is widely used in consumer electronics and DIY projects.
2. How do I choose the correct pin pitch?
   The appropriate pin pitch depends on the device design and current requirements. For example, if space is limited, the JST SH series may be ideal. For higher current demands, the JST XH series is a better choice.
3. How durable are these connectors?
   JST connectors are built to withstand multiple insertions and are designed for long-term use. Their durability makes them perform well in various environments.

References

• JST Connector – Wikipedia: Provides comprehensive information about JST connectors, including various series, applications, and specifications.
• Keeb.io – JST-SH Cable (4-Pin): Introduces specifications and applications for the JST-SH cable.
• Tinkersphere – 6 Pin JST PH Connector with wires: Mentions the availability and product options for 5 Pin JST PH connectors.
• Adafruit – JST PH 2-Pin Cable – Male Header 200mm: Describes cables compatible with JST PH connectors.

By understanding the 5 Pin JST Connector in depth, we can see its importance and wide application in electronic devices. Have you used this connector in your projects? If so, feel free to share your experiences and insights!
